Multifunctional new development of our slide channel door closer system for doors with a doo width of up to 1.400 mm. All four installation types can be achieved using just one closer body.
1 closer body for all 4 fixing positions plus DIN-L/DIN-R installation
3 different closing ranges 180°?15°;15°?0°; 7°?0°
All settings can be made conveniently from the front
For door leaf widths of up to 1.400 mm
Backcheck and delayed closing as standard
XEA design

Product details
The new development of our slide channel door closer

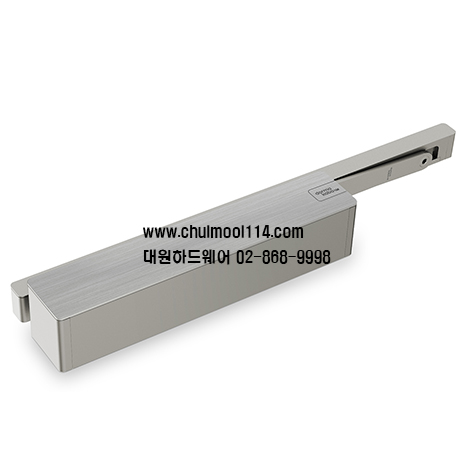

 The dormakaba TS 98 XEA slide channel door closer features the attractive, high- quality XEA design and is also flexible and easy to install. The closer body with an overall height of just 60 millimetres can be installed in all four fixing positions. Almost noiseless closing is made possible by the additional closing range from 15°?0°. The hydraulic functions and the closing force EN 1?6 can be set conveniently from the front. The selected closing force can be read from a visual indicator. Delayed closing and backcheck are available for all fixing positions. The tried and tested EASY OPEN technology provides barrier-free access. Even in the icy cold at temperatures as low as -40 °C the TS 98 XEA cuts a fine figure.

For the trade

Simplified requirement planning and stock keeping
Suitable offer for almost all applications
Meeting the widest range of user requirements a 1 closer body for all 4 types of installation


For the installer

All functions are always set from the front
The closing force can be regulated using a cordless screwdriver
1 closer for all 4 types of installation
Closing from 180° door opening (pull-side standard installation)
Visual closing force indicator
Height-adjustable slide channel
Compliance with the normative requirements for preventive fire protection and barrier-free access
With mounting plate, including universal fixing hole pattern and adjustable height, as standard

For the user

Easy opening action and fully controlled closing.
Adjustable hydraulic functions for easy adaptation to each specific door situation.
Almost noiseless closing


For the specifier / architect

High- quality design, winner of multiple awards
New colour options
Universal use facilitates the planning process
Allows the realisation of integrated design concepts across products
